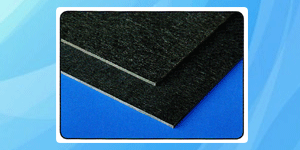

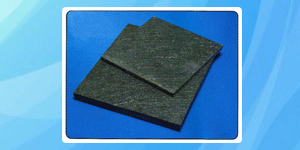

DUROSTONE RISHO
Durostone is a heavy-duty glass fiber reinforced plastic which offers extreme strength and excellent electrical, thermal and chemical properties. Durostone is
manufactured by using Polyester, Vinylester, Epoxid- and modified Epoxy resins combined with glass fibers. It can keep it's mechanical strength,smoothness and original color when continuously used under the temperature of 280"c (max. working temperature below 385 degree 10-20sec). It's applicable in ROHS applicance production line under high temperature continuously.

Key Features and Benefits
- Normalworking temperature at 325 'C, operating temperature up to 384 'C.
- Less distortion
- Superior dimensional stability.
- High temperature resistance.
- Resistance to chemical corrosion.
- High mechanical strength.
- Good machinability (low density)

Applications
Durostone is suitable to wave soldering and SMT process. lt can achieve the precision required during the SMT machining process, and maintain its flatness in the reflow soldering cycle. The low thermal conductivity of the durostone prevents heat-shrinkage of the bas board, to ensure the quality of reflow process.

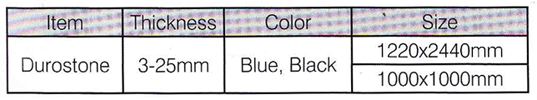

SPECIFICATION AVAILABLE
