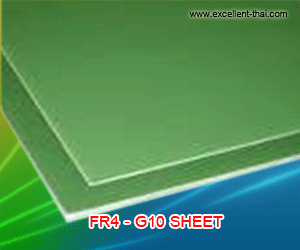

G-10/FR-4 is a thermosetting industrial
laminate consisting of a continuous
filament glass cloth material with an
epoxy resin binder. This product,
first introduced in the .1950's, has
characteristics of high strength, excellent
electrical properties and chemical
resistance. These properties are
maintained not only at room temperature
but also under humid or moist
conditions.
Key Features and Benefits
- High dielectric strength.
-
Radiation resistant.
- High tensile strength.
- Low cold flow or creep.
- Chemically resistant.
-
Dimensional stability.
-
Low dissipation factor.
-
High impact strength.
Applications
- Electrical equipment.
- Aerospace conditions.
- Rocket cases.
- Antenna insulators.
- Test boards.
- End plates.
- Cryogenic insulation.
- Terminal boards.
